DAQS Assist plugin installation steps

  1. Download the latest version of the plugin from: DAQS Assist download location
  2. Right-click the downloaded MSI file and go to properties.
  3. Unblock the file if the option is available.

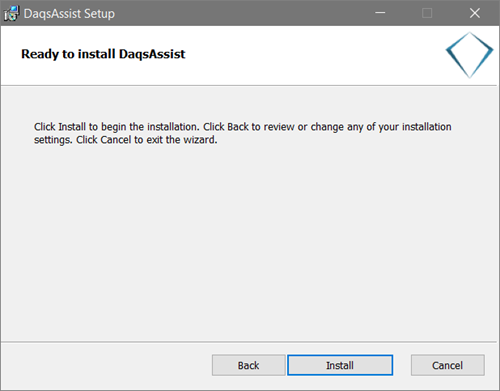

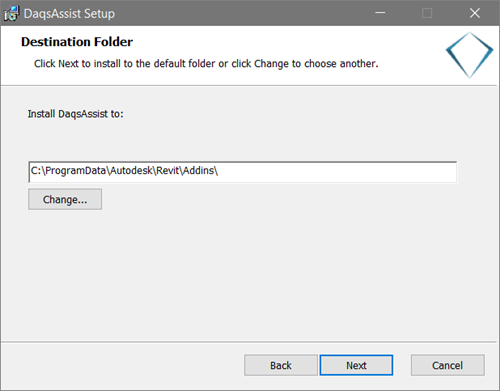

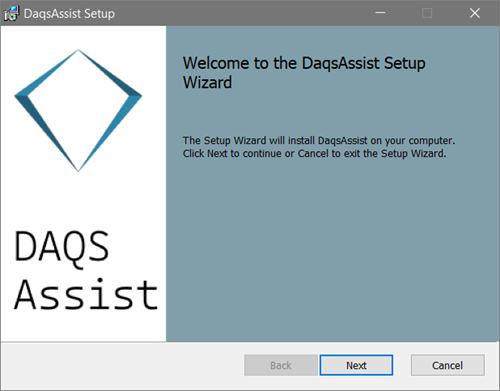

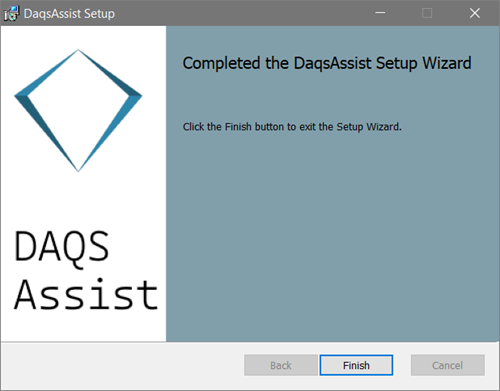

  4. Double click the MSI file and follow the instructions on the screens.

Steps in Revit

  1. Choose your option

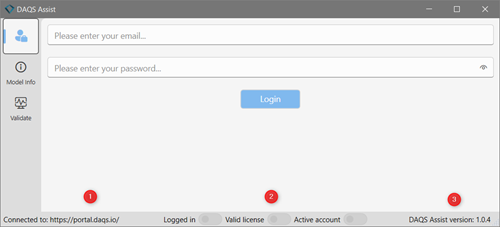

In Revit

  1. Connected to which DAQS server:
  2. License information
  3. DAQS Assist version information

Good to know:

  • The DAQS Assist writes JSON files in this directory: C:\tmp\Assist\Results
  • App Settings: C:\ProgramData\Autodesk\Revit\Addins\<year>\Daqs.Assist\appsettings.json
  • Log files: %AppData%Roaming\Autodesk\Revit\Autodesk Revit 202*\AddinsData\DAQS Assist <date>.log
  • Uninstall? Go to Windows Apps & Features, search for DAQS and uninstall
